Legrand 20 Way Screw Terminal Block 157mm

Legrand

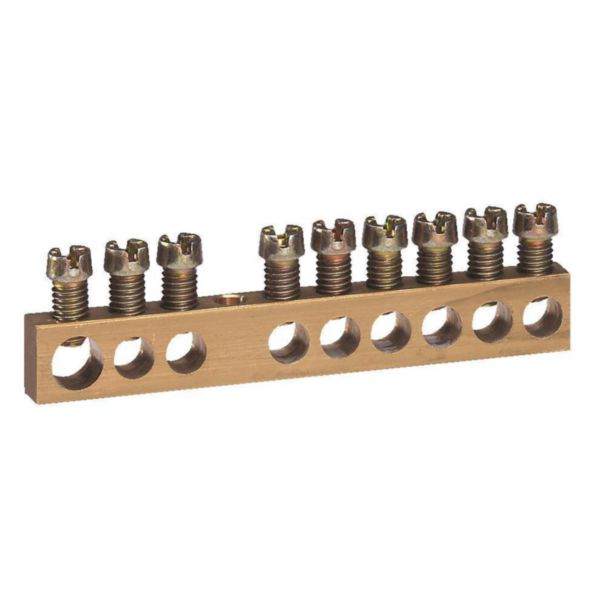

Legrand 20 Way Screw Terminal Block 157mm

REF. 04806 Barcode. 3245060048068
Download product sheet
You can compare up to 4 products
Features
  • Distribution terminal blocks
  • Supplied ready for use (screws not tightened)
  • 100 A max. - 400 V~ with 25 mm² input
  • 80 A max. - 400 V~ with 16 mm² input
  • For use with Ø M4 screws
User Recommendations
  • Compatible with Universal block supports - 048011, 004817 or 404821
Overview
These distribution terminal blocks are constructed from brass and feature zinc-plated bichromated steel. They can be effortlessly installed using universal terminal block supports that are compatible with Plexo³ / HL and XL³ 125 enclosures.

Technical Specifications

Number of poles 1
Nominal current 90 A
Connection type Screwing
Mounting method Screw
Number of inputs 1
Number of outputs 19
Suitable for solid conductors Yes
Suitable for stranded conductors Yes
Suitable for fine strand conductors Yes
Suitable for fine strand conductors without cable end sleeve No
Suitable for extra fine-strand conductors No
Suitable for extra fine-strand conductors without cable end sleeve No
Conductor cross section, input 6-25 mm²
Conductor cross section, output 1.5-16 mm²
Contact safe No
Height 10.5 mm
Width 157 mm
Depth 6.5 mm
Operating / setting temperature -5-40 °C
Storage temperature -25-70 °C
Type of distribution blocks Multifunction
Terminals capacity 1.5-25 mm²
Label space/information surface No

Documentation

1 document
Technical Sheet
F00193EN-02.pdf pdf (0.46 Mo)
