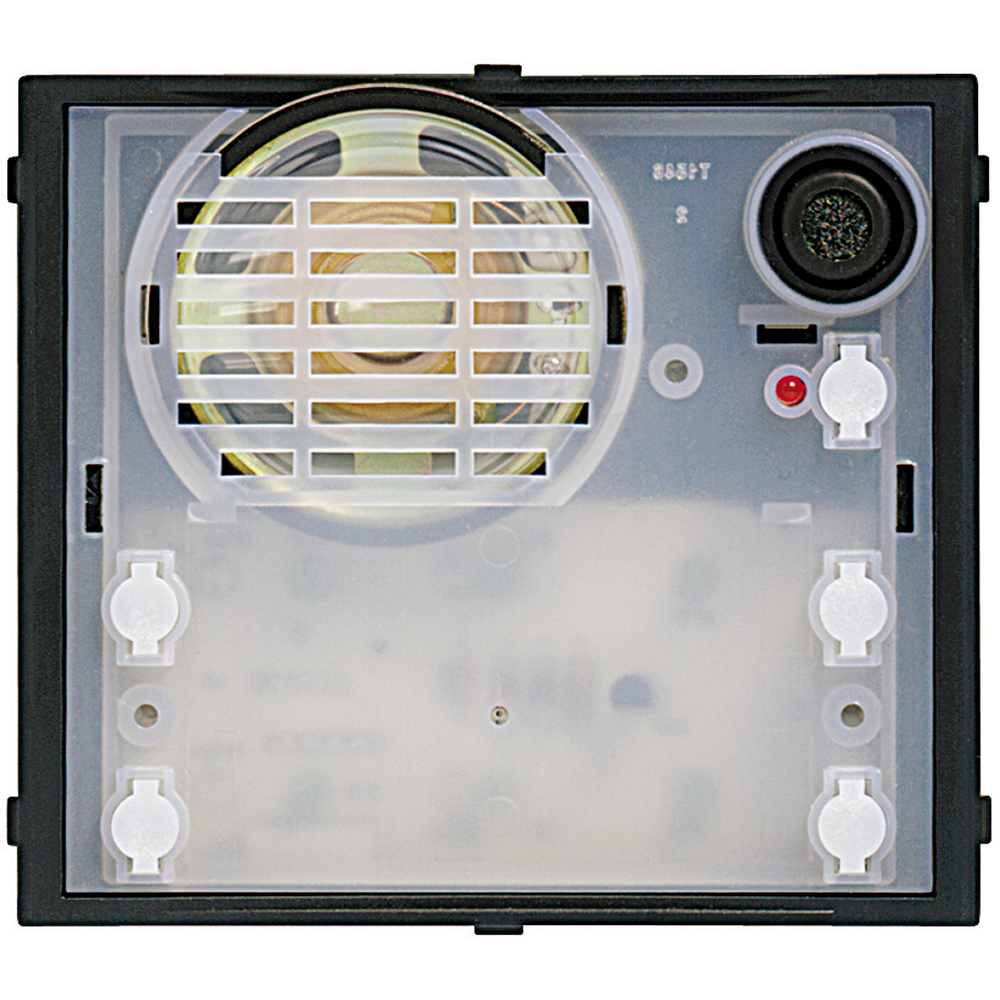

Bticino Sfera 4 Calls Audio Module

Sfera Bticino

Bticino Sfera 4 Calls Audio Module

REF. 342350 Barcode. 8012199502380
1 Year Warranty
Download product sheet
You can compare up to 4 products
Features
  • Function modular composition (12 available electronic modules)
  • Separate composition of the finishes
  • 2 Wire technology
  • Minimum protrusion from the wall
  • Easy configuration and maintenance

Quality You Can Trust

Installation
  • Horizontal and vertical side by side installation of the modules
Unique Characteristics
  • Advanced video functions: Night & Day cameras, wide angle camera
  • Door lock release function: with keypad, with key card reader
  • Inductive loop function and control speech synthesis

Technical Specifications

Number of call buttons 4
Material call buttons Plastic
Material front Other
Front plate height 89 mm
Front plate width 100 mm
Built-in depth 20 mm
Mounting method Flush-mounted
Installation technique Bus system
Colour Other
Degree of protection (IP) IP54
degree of impact strength (IK) IK07
Operating / setting temperature -15-50 °C
Storage temperature -20-70 °C
Voltage type AC/DC
Nominal voltage 18-240 V
Supply current 0.04-1 A
Frequency 50-60 Hz
Sound level 80 dB
Standby consumption 40 mA
Halogen free Yes
Cable nature for connection Flexible
Cable section 1-2.5 mm²
Label space/information surface Yes
Fitted with rainproof plate protection Yes
With complemantary luminous signal No
Vertical fixing center distance 1600-1650 mm
Horizontal fixing center distance 30-50 mm
Control mode Wired
Contains Batteries and/or Accumulator No
Hands free Yes
Loudness setting Yes
Addressable No
Door entry system with mobile application Yes
Remote opening of gate / Electric door opener No
Camera type Adjustable
Video recorder angle 100 °
Max distance between internal and external unit 150 m
Communication rank type Other
IEC code (Pack1) Not applicable
Battery ou Accumulator (Pack1) Not applicable
Element Composition (Pack1) Not applicable
Connected object Yes
Operating method SCS
With voice command No
Programmable No
Interoperable connection Protocol No
Connectable by Internet box No

Documentation

1 document
Technical Sheet
BT00620-b-EN.pdf pdf (0.51 Mo)
