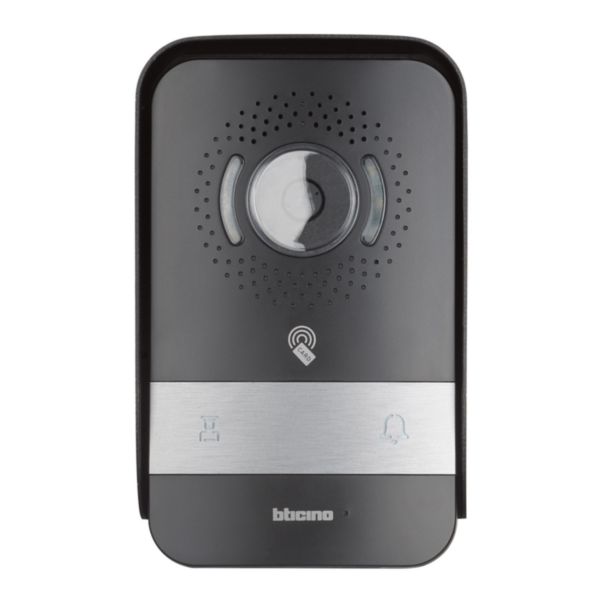

Bticino Compact IP DES Small Video Entrance Panel

Bticino

Bticino Compact IP DES Small Video Entrance Panel

REF. 374006 Barcode. 8005543732304
Download product sheet
You can compare up to 4 products
Features
  • Compact entrance panel with badge reader and key for calls to internal video unit and guard station
  • Complete with bracket required for wall installation
  • Can be powered via PoE or directly with power supply (375005)
Overview
The Bticino Compact IP DES Video Entrance Panel has been designed for indoor installation, combining compact design with advanced features for enhanced entryway management. This compact video entrance panel features a badge reader and capacitive keys, enabling users to effortlessly call the indoor unit and concierge station.

Technical Specifications

Number of call buttons 2
Material call buttons Plastic
Material front Aluminium
Front plate height 160.5 mm
Front plate width 100 mm
Built-in depth 36.6 mm
Mounting method Surface mounted
Installation technique Bus system
Colour Black
Degree of protection (IP) IP54
degree of impact strength (IK) IK07
Operating / setting temperature -10-50 °C
Storage temperature -25-70 °C
Voltage type AC/DC
Sound level 80 dB
Standby consumption 40 mA
Halogen free Yes
Cable nature for connection Flexible
Cable section 1-2.5 mm²
Label space/information surface Yes
Fitted with rainproof plate protection Yes
With complemantary luminous signal No
Control mode Wired
Hands free Yes
Loudness setting Yes
Addressable No
Remote opening of gate / Electric door opener No
Camera type Adjustable
Video recorder angle 95 °
Max distance between internal and external unit 150 m
Communication rank type 2
Connected object Yes
Operating method Network
Application store for download App Store , Google Play Store
With voice command No
Programmable No
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Programming way Web software
Application name Home + Security
Product use function Door entry systems

Documentation

2 documents
Installation Guide
RA00216AB_EN.pdf pdf (11.85 Mo)
Technical Sheet
ST-00001209-EN.pdf pdf (1.51 Mo)
1 document
3D Autocad
3D_BT-374006.stp ifc (16.33 Mo)
