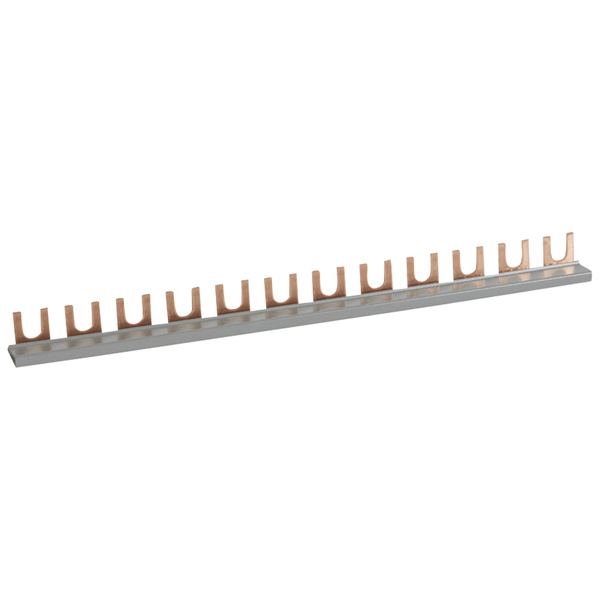

Supply Busbar and Accessories

Save time with quick connection. This fork type is utilised in the fork entry terminal of compatible CX3 and TX3 ranges. It can be installed at the top or bottom of single phase.

• Fork-type supply busbars​

• Single pole​

• Filled with end protection​

• Length : 1 row​

• Max. number of devices connected : 12​

• 80A

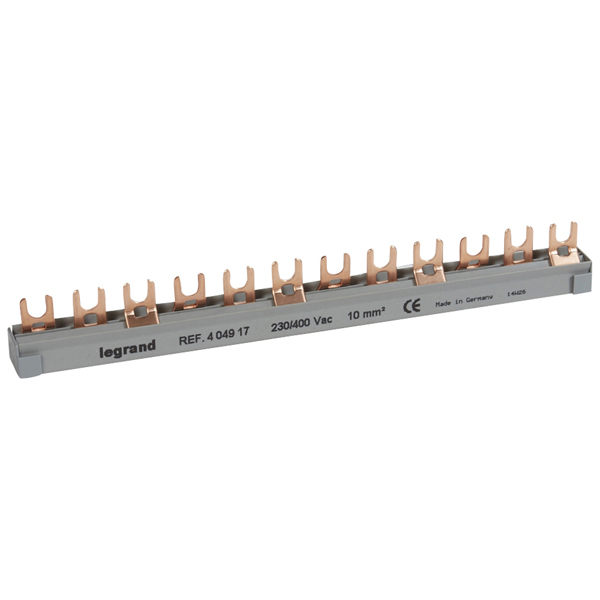

Quickly and safely connect all devices on the same row. This fork type is utilised in the fork entry terminal of compatible CX3 and TX3 ranges. It can be installed at the top or bottom of 3-phase installation.

• Fork-type supply busbars​

• 3 pole​

• Filled with end protection​

• Length : 1 row​

• Max. number of devices connected : 10​

• 80A

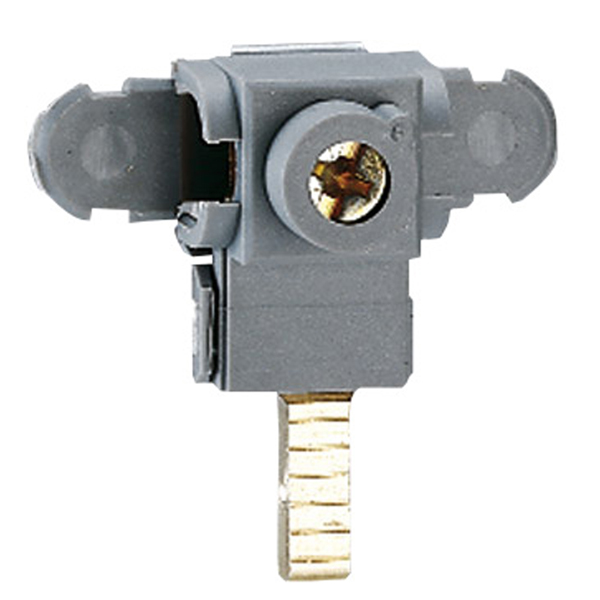

Provides power supply at the front or the rear of the fork or prong busbar. Suits all devices with moving cage terminals.

• Entry terminals​

• For universal single pole + neutral or single pole supply busbar​

• Cross section: 4 to 25 mm² - IP 2X​

• 80A
